QN-I-740

INDOOR – WI-FI 7 (802.11be)

Product Overview

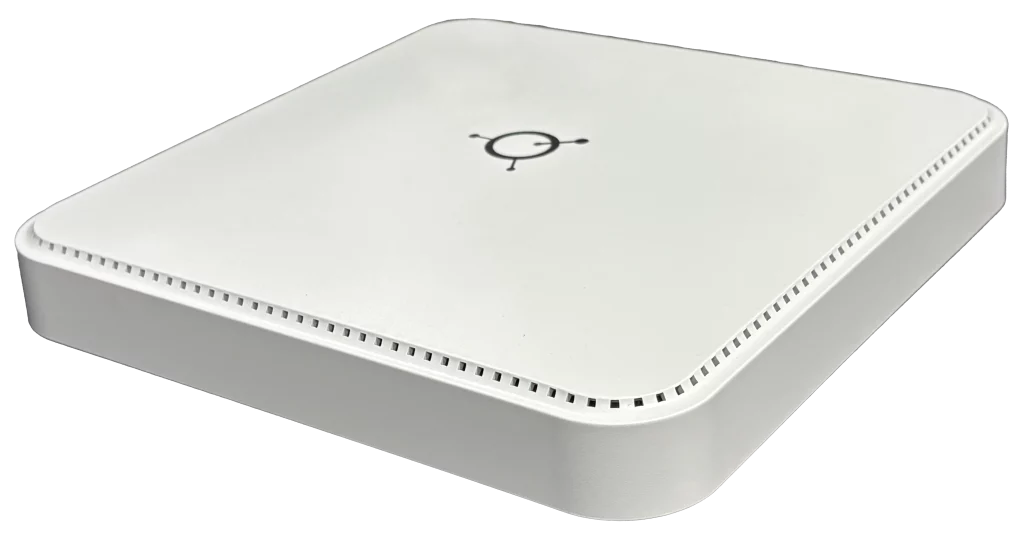

The QN-I-740 Wi-Fi 7 (802.11be) indoor access point features a multi-link operation (MLO) for channel aggregation and 4K QAM for higher throughput and lower latency. It unlocks the 6 GHz band, more than doubling the available capacity, making it an advanced connectivity solution tailored for high performance environments and modern, high-traffic demands.

The QN-I-740 is a premium Wi-Fi 7 enterprise-grade access point supporting 2-stream operation in 6GHz and 2.4GHz bands, and 4-stream operation in the 5GHz band with 802.11be technology. It offers exceptional capacity, optimized spectrum utilization, and flexibility, achieving a tri-band aggregate data rate of 11.1 Gbps. With features like Multi-link Operation, Preamble Puncturing, Uplink/Downlink OFDMA, and MU-MIMO, it delivers reliable performance in high-density environments, making it ideal for large enterprises, university campuses, and healthcare facilities.

10G SFP+ Connectivity

6 GHz – 2x2
5 GHz - 4x4,
2.4 GHz - 2x2

2.5 GbE Connectivity

QN-I-740

Indoor- Wi-Fi 7 (802.11be)

Up to 11.1 Gbps Data Rate

MU-MIMO with
OFDMA

3 Years Warranty

Wi‑Fi 7 Standard

The QN-I-740 provides extensive coverage across 2.4 GHz, 5 GHz and 6 GHz, achieving a maximum tri-band aggregate data rate of 11.1 Gbps. It also offers configurable high availability through 2.5 Gbps Ethernet ports for seamless failover of both data and power, along with 10G SFP+ ports that ensure business continuity for mission-critical applications.

Extend the Benefits of Wi-Fi 7

The QN-I-740 access point, based on the 802.11be standard, provides efficiency and security enhancements on the 6 GHz band. It fully supports Wi-Fi 7 features like OFDMA and BSS Coloring and introduces new capabilities such as wide 320 MHz bandwidth channels, multi-link operation (MLO) for channel aggregation and failover and 4096 QAM (4K QAM) for higher peak data rates.

Versatile management options

Experience versatility in management with a range of options, including cloudbased management or operation without a dedicated controller.

Product Features

Unified Security Center for Wireless and Wired Network Protection

Quantum Hawkeye simplifies wireless device security management through automated categorization using a proprietary method, while delivering comprehensive defense against rogue access points, soft APs, Wi-Fi DoS attacks, and more, ensuring robust protection across wireless and wired networks, all while enhancing core network security to empower administrators with confident risk identification and mitigation.

Theft prevention functionality

Implement robust theft prevention measures with a secure access point locking mechanism. Ensure access points remain exclusive to their designated networks until they are properly decommissioned. This security feature safeguards against unauthorized deployment in other networks, enhancing overall network integrity.

Three-year warranty

Three-year limited liability manufacturer’s warranty from the date of activation of the device.
