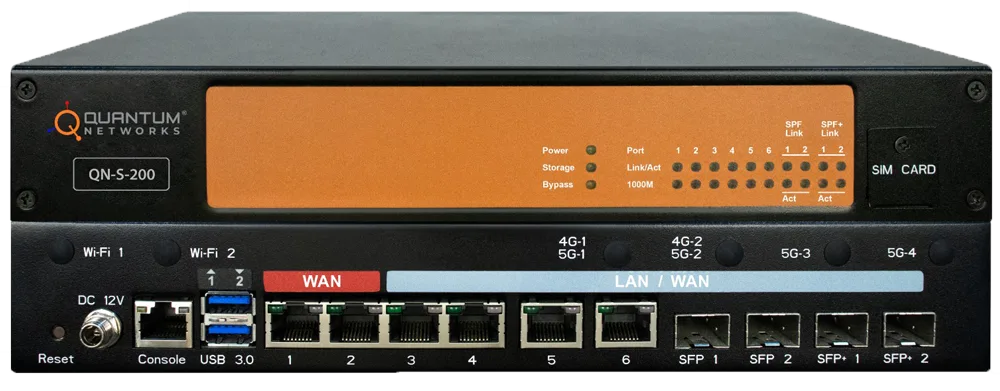

QN-S-200
Multi-WAN Routing Device
Product Overview
Manage and Monitor up to Six WAN connections. QN-S-200 supports up to 4 Wired WAN ports and two cellular (USB) WAN ports. Administrators can implement Link Load Balancing policies based on various protocols to optimize WAN usage and steer traffic to links in accordance with corporate needs.
Administrators can manage inbound access, outbound access and Tunnels on one single device. Inbound access (L2TPVPN), outbound access and Tunnels (IPsec and GRE) can be implemented. Administrators can deploy various network topologies as per their Wide Area Network requirements.
Stateful Firewall
2 x ETH, 2 x USB WAN Interface
4 x ETH, 2 x SFP, 2 x SFP+ LAN Interface
- QN-S-200 is loaded with many integrated tools, such as external captive portal support and lots of other add-on features. Such features extend the functionality to many facets, such as an external captive portal that allows administrators to onboard guests, dynamic routing protocols, etc.
- The gateway can be used to implement policy-based routing as well as firewall rules. It reduces device count and total cost of ownership at branches.
- Application policing and URL blocking: Application policing allows administrators to monitor, block and shape traffic by application. URL blocking policies can also block URLs, filter protocols and ports. This gives administrators complete control over implementing WAN traffic policies.
- Anywhere - Anytime management of branch connectivity: All Gateway devices can be managed centrally using the Quantum Rudder platform or Quantum Ace on mobile devices. Instantly get alerts when a link or a branch is down. Logs and analytics help to scale with ease.
Interface
- Multiple interface can be defined as WAN or LAN
WAN
- Intelligent ISP failover
- Link method DHCP, Static IP, PPPoE
- Link health check
- Surfing quota
- Dynamic DNS service
- VLAN support
LAN
- Multiple LAN network
- Independent DHCP server for each network
- Extended DHCP options
- DHCP lease reservation
- DNS cache and proxy support
Tunnels
- IPSec VPN
- GRE tunnel
- Q-Bond
Inbound access
- L2TP server for remote client connection
- Port forwarding on LAN clients
Product Features
Outbound Access
- Multiple algorithm for outgoing traffic
- Per-service load distribution on multiple ISP
- Intelligent failover on multiple ISP
- Secure session persistence
NAT Mappings
- Many-to-one NAT for outbound access
- One-to-one NAT for inbound / outbound access
Routing Protocols
- RIP, OSPF, BGP
Firewall
- Stateful firewall
- Device DoS protection
- Application policy control
- Per device session control
Bandwidth Management
- Shared bandwidth for group of devices
- Bandwidth allotment per device
- Bandwidth allotment per service
Other Features
- External captive portal support
- RADIUS support
- Secure device access
- NTP support
- Data usage analytics
- Real-time bandwidth usage
